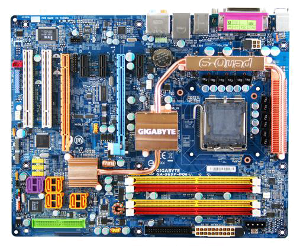

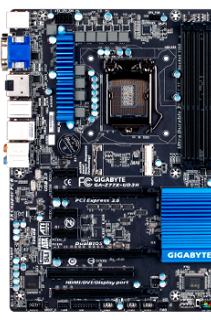

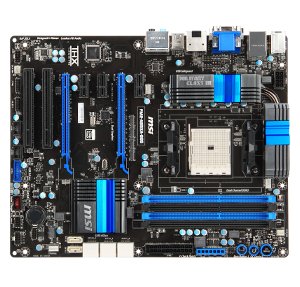

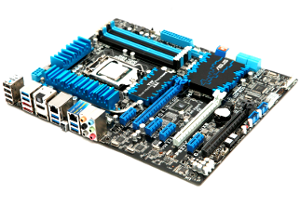

In this example from an MSI motherboard, the graphics, IDE and SATA are controled by Nvdia chip sets the sound and network by Realtek chip sets
CPU
Support socket AM2 for AMD Athlon 64/Athlon 64X2 CPU / AM2+ for AMD Phenom CPU / AM3 for AMD Phenom II / Athlon II CPU
Hyper Transport Bus
HyperTransport 1.0 supporting speed up to 1000MT/s
Chipset
NVIDIA MCP61P (6150SE)
Main Memory
Supports Dual Channel DDR2 667/800
2 DDR2 DIMMs (240pin / 1.8V)
Supports a maximum memory size up to 8GB.
Slots
One PCI Express 1.0 x16 slot.
One PCI Express 1.0 x1 slot.
Two PCI slots (support 3.3v/5v PCI bus interface).
On-Board IDE
One IDE port by NVIDIA GeForce 6150SE
Supports Ultra DMA 66/100/133 mode
Supports PIO, Bus Master operation mode
Can connect up to two IDE devices
On-Board SATA
Two SATA II ports by NVIDIA GeForce 6150SE
Supports storage and data transfers at up to 3Gb/s
RAID Function
SATA II 1~2 supports RAID 0, 1 mode by NVIDIA GeForce 6150SE
Audio
Chipset integrated by Realtek ALC888S
Flexible 8-channel audio with jack sensing
Compliant with Azalia 1.0 Spec
LAN
Supports 10/100 Fast Ethernet by Realtek 8201EL
Internal I/O Connectors
ATX 24-pin power connector
4-pin ATX 12V power connector
CPU x1 / System x1 FAN connectors
CD-in connector
1 x Floppy disk drive connector
4 x SATA II connectors
1 x ATA133 connectors
2 x USB 2.0 connector support additional 4 ports
SPDIF-Out connector
Front panel connector
Front panel audio connector
Chassis intrusion switch connector
Clear CMOS Jumper
1 x TPM connector
Back Panel I/O Ports
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x Serial port
1 x VGA port
1 x 3 in 1 audio jack
4 x USB 2.0
1 x RJ45 LAN Jack
|
